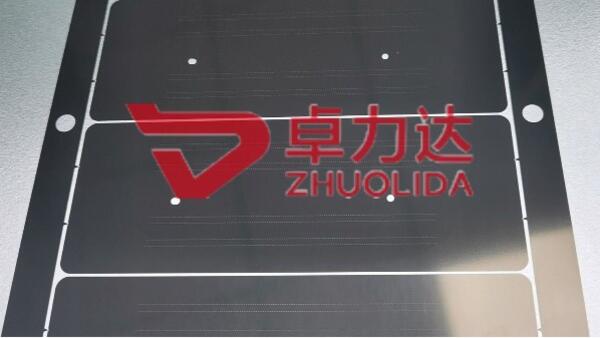

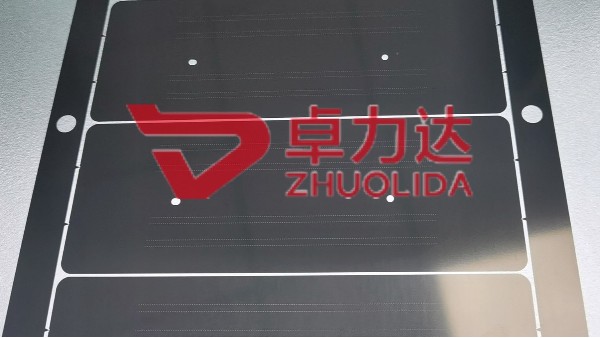

Electroformed Nozzle Plate: The Core Precision Component for Inkjet Printers

An electroformed nozzle plate is the heart of an inkjet printhead, governing ink droplet formation, jetting stability and final printing quality. For industrial inkjet printer developers and printhead manufacturers, selecting reliable electroformed nozzle plates directly determines print resolution, consistency, service life and maintenance frequency of the whole printing system. As a professional electroforming manufacturer, Zhuolida delivers custom electroformed inkjet nozzle plates with micron-level precision for global industrial printing customers, covering R&D prototyping, small batch sampling and mass production.

Electroforming is a unique metal deposition microfabrication technology, different from laser drilling, chemical etching and mechanical punching. The electroformed nozzle plate is produced by depositing nickel metal onto a precision mandrel under controlled electrochemical environments. Compared with other machining methods, electroforming enables ultra-smooth hole walls with low surface roughness and custom three-dimensional nozzle profiles, such as bell-mouth tapered holes, which cannot be achieved by conventional processing. Bell-mouth nozzles greatly reduce ink clogging risk, minimize residual ink accumulation and maintain stable droplet trajectory during continuous high-speed printing.

Material selection is critical for electroformed nozzle plates. High-purity nickel is the dominant raw material for most inkjet nozzle plates. Nickel features outstanding chemical resistance against various industrial inks, UV ink, solvent-based ink and aqueous ink, as well as excellent mechanical strength. Even under long-cycle pressure impact from repeated ink ejection, electroformed nickel nozzle plates keep stable dimension without deformation. Customers can request optional surface coating treatments to further enhance anti-corrosion performance or adjust surface wettability for special ink formulas.

Precision control is the biggest advantage of electroformed nozzle plate. Zhuolida can achieve tight dimensional tolerance down to ±0.005 mm on nozzle diameter, hole pitch and plate thickness. The nozzle diameter can be customized within the range of several microns to dozens of microns, and plate thickness normally ranges from 20 μm to 50 μm. Every nozzle across the whole plate maintains uniform geometry, ensuring identical droplet size, droplet speed and jetting angle for hundreds or thousands of nozzles on one single plate. Consistent droplet performance eliminates printing defects like streaks, misfiring and uneven dot density, which is essential for high-resolution industrial printing applications.

Electroformed nozzle plates serve multiple industrial inkjet scenarios. In industrial digital printing, these components support high-speed label printing, packaging printing and textile inkjet printing. In electronic manufacturing, electroformed nozzle plates are widely used for circuit marking, PCB inkjet printing and solder mask dispensing. They are also adopted in 3D printing, solar cell metallization and precision fluid dispensing systems. Whether customers require dense multi-nozzle arrays or single-row linear nozzle layouts, electroforming technology provides flexible design freedom.



Many engineers often compare electroformed nozzle plates vs laser-drilled nozzle plates. Laser drilling burns microholes directly on metal sheets, which brings thermal affected zones around hole edges. Extra polishing post-treatment is required to remove burrs, and hole consistency declines in high-density nozzle designs. By contrast, electroforming forms complete nozzle structures from mandrel replication. There is no thermal damage, no burrs and superb repeatability batch by batch. While laser drilling works well for quick simple sampling, electroformed nozzle plates become more cost-effective for long-term mass production with strict stability requirements.

At Zhuolida, the full workflow of electroformed nozzle plate production includes photolithography mandrel making, electro-deposition, separation, cleaning, inspection and packaging. Every piece goes through rigorous quality testing, including microscopic inspection for hole geometry, dimensional metrology and jetting performance test. Our engineering team collaborates closely with customers at the early design phase. We provide design suggestions for nozzle layout, hole shape and material selection to match customer’s ink properties, printing speed and resolution targets. Custom samples are available for performance verification before formal mass production.

What makes a qualified electroformed nozzle plate supplier? Apart from precision capability, stable quality control and custom development support matter most. Many overseas printhead brands seek manufacturers that can handle complex microstructures, maintain consistent batch quality and deliver proper technical documentation. Zhuolida integrates precision etching and electroforming technologies in-house, supporting one-stop precision metal component solutions beyond electroformed nozzle plates.
