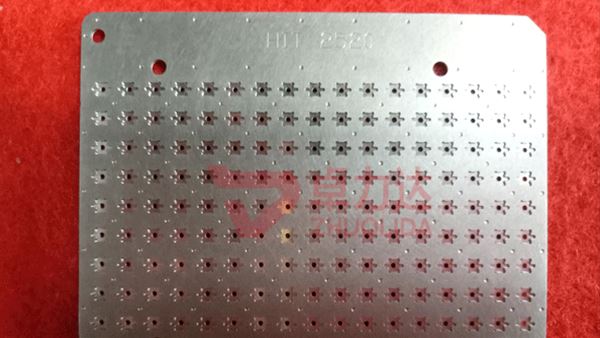

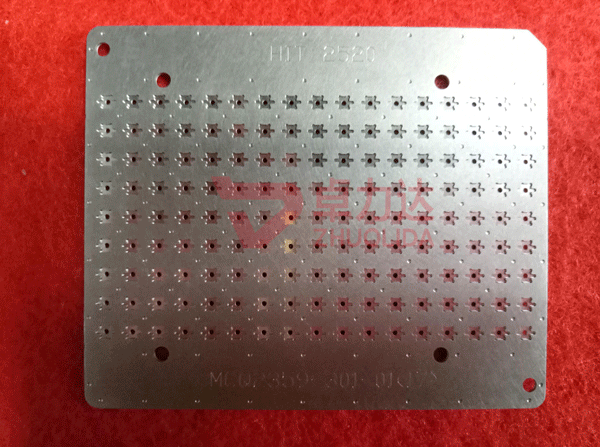

Mask fixture
Mask fixture is a mask fixture for cleaning and vacuum coating with imported stainless steel SUS430, SUS304, SUS301, SUS316 and other metal stainless steel materials after chemical etching processing.

86-513-81601668 86-18206293159

PRODUCT DETAILS

Product introduction

Product name:

Mask fixture

Product introduction:

Mask fixture is a mask fixture for cleaning and vacuum coating with imported stainless steel SUS430, SUS304, SUS301, SUS316 and other metal stainless steel materials after chemical etching processing.

Product use:

Mask fixture is widely used in mask and cleaning device of various crystal components in vacuum environment due to its imported material properties and welding properties.

technological process:


The workpiece to be welded is pre-fixed at the counterpoint -- into the furnace -- pressurized -- vacuumized -- heated -- pressure-protected -- cooled -- out of the oven -- inspected -- compound required shipment.

Our advantages

1、Up to 2018, we have been engaged in the field of etching for 19 years. In 2015, the company invested in building a new industrial park in nantong, learned from the successful experience of shenzhen and kunshan branch, and committed to technical innovation, r&d, production and sales of mask fixture products in the middle and high-end market.

2、The company has successively passed iso9001:2008 quality management certification and iso14001:2004 environmental management system. In 2016, the company passed ISO/TS 16949 certification and high-tech enterprise certification, and has obtained a number of property rights and patents. Zolida has been focusing on technology research and development, with a professional laboratory and external employment and training of high-tech talents, is a benchmark enterprise in the industry.

3、As a member of PCMI, the world etching association, the company can share information and equipment resources of precision etching and mask fixtures in the industry.

4、The company has introduced a number of etching production lines and seamless welding equipment, has a liquid medicine automatic addition system and regeneration system, the development of the company also pay attention to environmental protection, self-built large sewage treatment system, waste water reuse rate of more than 40%, is a rare in the metal etching industry to build a dedicated waterless treatment system of the manufacturer. The company aspires to become an environmental protection enterprise, green enterprise. Cooperated with nanjing university of aeronautics and astronautics to set up the joint laboratory of vacuum diffusion welding and diffusion welding equipment manufacturing.

5、Vacuum diffusion welding technology can be used to weld the materials that are difficult to be welded by other methods, whether it is the same material with poor plasticity or high melting point, or the dissimilar metal materials that are insoluble with each other or produce intermetallic compounds when fusion welding, the welding joint can be more solid.

6、With shenzhen zhuolida, kunshan zhuolida and nantong zhuolida three production bases, the comprehensive area of more than 40,000 square meters. A variety of conventional, imported and customized non-standard precision welding equipment can meet the production capacity and the accuracy of various mask fixture requirements.


PRODUCT CHARACTERISTICS

  • 01

        Mask fixture is a quartz crystal or wafer double-sided sputtering was silver device can also be called a mask fixture, it includes the vacuum chamber, vacuum pump group, the workpiece frame, magnetron sputtering target, radio frequency (rf) plasma cleaners and inert gas aerator, described the vacuum pump group and inert gas aerator respectively connected to the vacuum chamber, its characteristics is described in the vacuum chamber is equipped with the workpiece, the workpiece to rotate, artifacts described the rack installation have to flip the substrate, the substrate rack is equipped with slide plate, described in the slide plate set a diaphragm, quartz crystal slice and mask work rest on one side of the general set up two magnetron sputtering target with block membrane cover, On the other side, an rf plasma online cleaner is set, one magnetron sputtering target is the transition layer sputtering target, and the other magnetron sputtering target is the electrode layer sputtering target. The mask fixture is usually of a combined thickness of 1.0mm or more, with cavities of different shapes and depths on both sides. It is usually made by layered etching, and then by vacuum diffusion welding the boards together, so that a finished product is finished.

  • 02

        The carrier of the original graphics during the exposure process of the mask fixture. Through the exposure process, the information of these graphics will be transmitted to the chip. When manufacturing chips, MCU mask refers to the program data has been made into optical engraving, in the process of MCU production to do the program. The mask fixture produced by zolida has high precision and is currently the alternative to the production in Taiwan and Japan. Smooth uniform hairless prickle, flatness maintained below 0.02 is a stainless steel mask version of the characteristics.



Zhuolida has an imported etching processing line and a vacuum diffusion welding workshop, which can manufacture various kinds of grinding cruises, mask clamps, linear fine tuning plates, automatic dispensing plates, automatic sealing plates and other special equipment for the crystal industry. The mask jig products are all imported materials and precision manufacturing technology, and can be provided according to the specifications, requirements, design and manufacture of related products. If you want to find mask fixture manufacturers, please contact us zhuolida, zhuolida staff will be dedicated to serve you.
